Analog DevicesADP1741-EVALZPower Management Development Boards and Kits

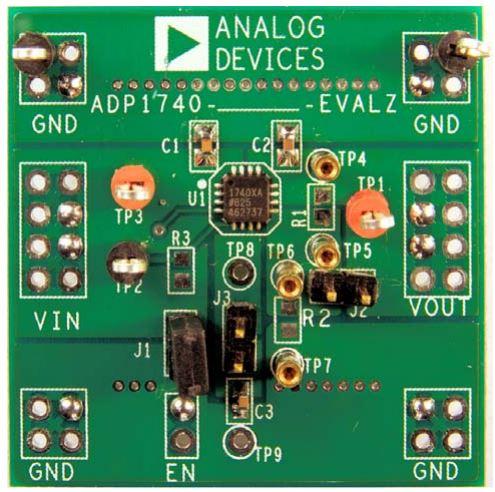

ADP1741 Linear Regulator Evaluation Board
| Compliant | |
| EAR99 | |
| Active | |
| 8473.30.11.80 | |
| Automotive | No |
| PPAP | No |
| Evaluation Board | |
| Linear Regulator | |
| 1 | |
| 0.5 to 2000 | |
| 1.6VDC to 3.6VDC | |
| ADP1741 | |
| -40 | |
| 125 |
Save the earth with a better design by implementing this ADP1741-EVALZ power management development kit by Analog Devices.
Dev Kit Description
The ADP1740/ADP1741 evaluation board is used to demon-strate the functionality of the ADP1740/ADP1741 series of linear regulators.Simple device measurements, such as line and load regulation, dropout, and ground current, can be demonstrated with just a single voltage supply, a voltmeter, a current meter, and load resistors.
