Connector Headers and PCB Receptacles

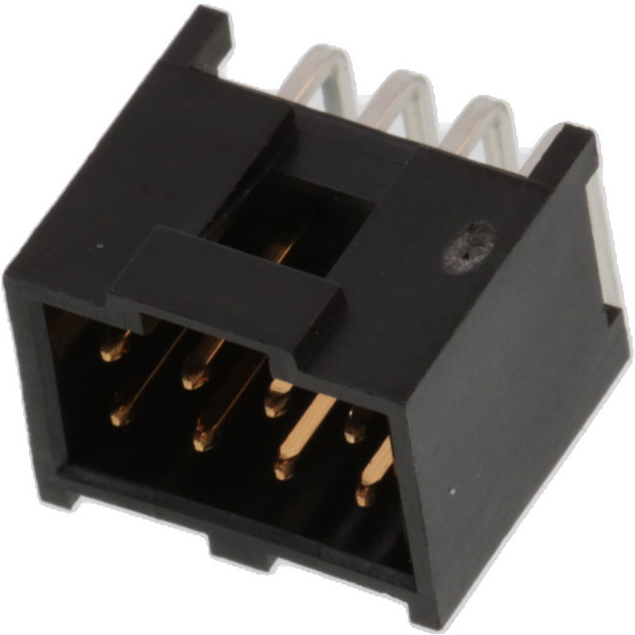

901303208

Conn Shrouded Header (4 Sides) HDR 8 POS 2.54mm Solder RA Side Entry Thru-Hole C-Grid III Tray

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• Automotive

  No

• PPAP

  No

• Type

  Shrouded Header (4 Sides)

• Gender

  HDR

• Number of Contacts

  8

• Number of Rows

  2

• Termination Method

  Solder

• Terminal Pitch (mm)

  2.54

• Body Orientation

  Right Angle

• Polarization Type

  Center Key/Center Slot

• Row Spacing (mm)

  2.54

• Maximum Current Rating (A)

  3/Contact

• Maximum Voltage Rating

  350VAC|350VDC

• Insulation Resistance (MOhm)

  5000

• Maximum Contact Resistance (mOhm)

  30

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• Mating Cycle (Cycles)

  100

• Packaging

  Tray

• Product Weight (g)

  1.239

• Product Length (mm)

  12.5

• Product Depth (mm)

  9.75

• Product Height (mm)

  10.9

• Tradename

  C-Grid III

• Mounting

  Through Hole
