Connector RF

901-9531-3

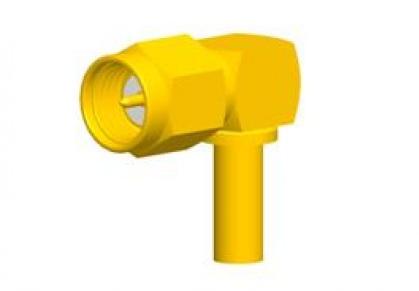

901-9531-3 Amphenol RF Connectors SMA 0Hz to 12.4GHz 50Ohm Solder RA Cable Mount PL Gold Over Nickel - Arrow.com

Amphenol RF

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.10

• Automotive

  No

• PPAP

  No

• Type

  SMA

• Gender

  PL

• Termination Method

  Crimp

• Body Orientation

  Right Angle

• Contact Gender

  M

• Contact Plating

  Gold Over Nickel

• Operating Frequency (Hz)

  0 to 18G

• Maximum Insertion Loss (dB)

  0.12

• Impedance (Ohm)

  50

• Insulation Resistance (MOhm)

  5000

• Mating System

  Threaded

• Mating Cycle (Cycles)

  100

• Polarity

  Standard

• Minimum Operating Temperature (°C)

  -65

• Maximum Operating Temperature (°C)

  165

• Product Length (mm)

  17.3

• Mounting

  Cable Mount
