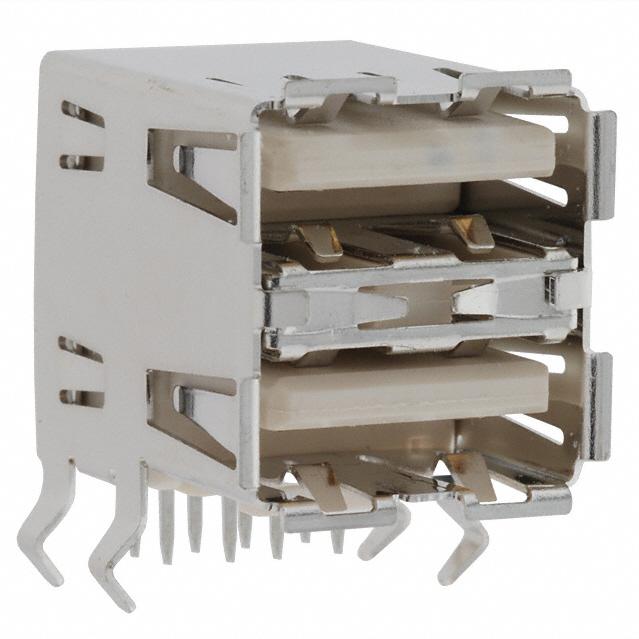

Connector USB

896-43-008-90-000000

Conn USB 2.0 Type A RCP 4/4 POS Solder RA Thru-Hole 8 Terminal 2 Port Tube

Mill-Max

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Obsolete

• HTS

  8536.69.40.40

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Type

  USB 2.0 Type A

• Gender

  RCP

• Number of Terminals

  8

• Number of Contacts

  4/4

• Number of Ports

  2

• Termination Method

  Solder

• Body Orientation

  Right Angle

• Maximum Current Rating (A)

  1/Contact

• Maximum Voltage Rating

  30VAC

• Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  30

• Mating Cycle (Cycles)

  1500

• Shell Material

  Stainless Steel

• Shell Plating

  Matte Tin Over Nickel

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Packaging

  Tube

• Product Length (mm)

  14.5

• Product Depth (mm)

  16.97

• Product Height (mm)

  16.19

• Mounting

  Through Hole
