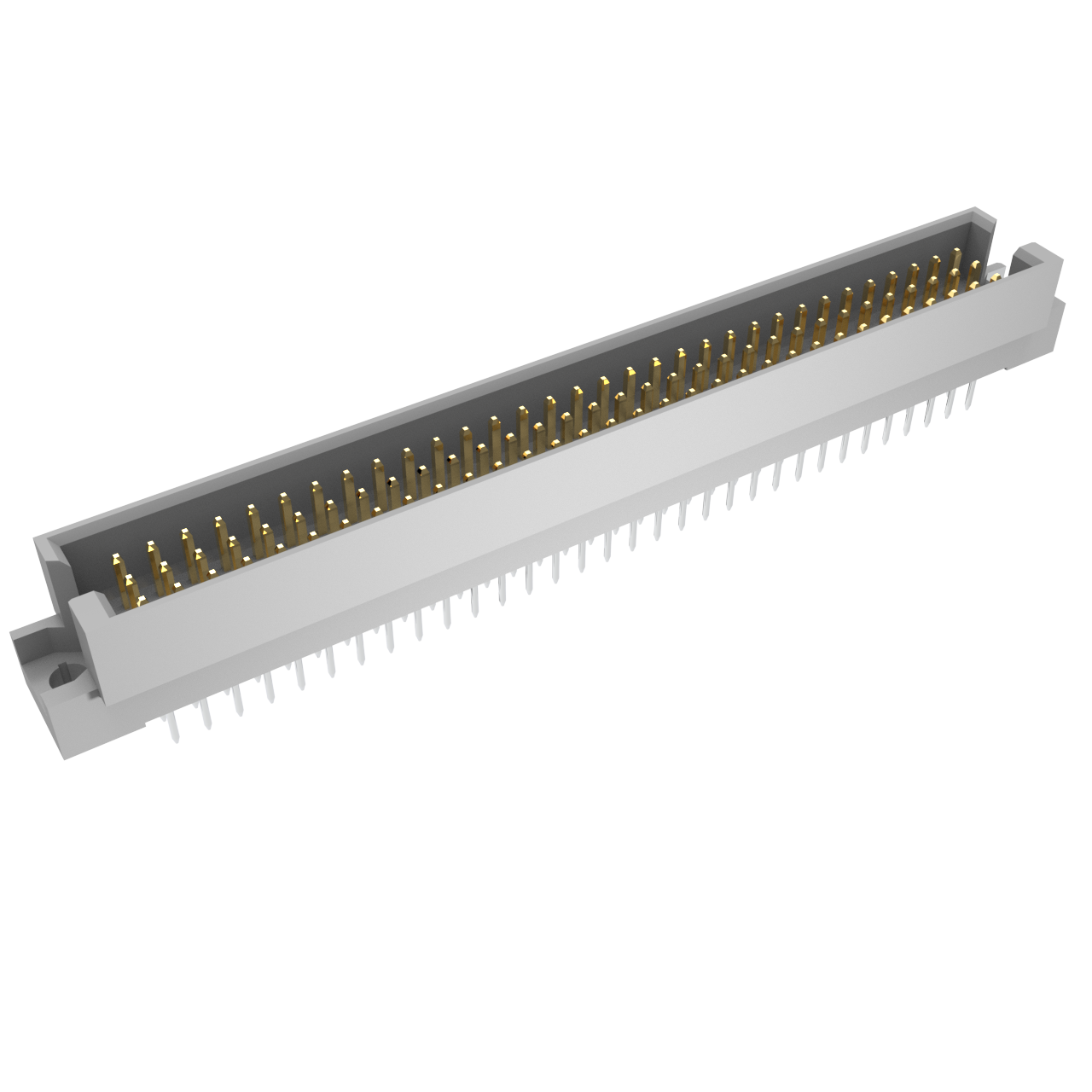

Connector Backplane

86093967814755ELF

DIN Headers & Receptacles, Backplane Connector, Straight Header, Solder-to-Board Style R, 96 ways, Class II, Tail Length: 4mm

Amphenol Communications Solutions

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• SVHC

  Yes

• Automotive

  No

• PPAP

  No

• Type

  DIN 41612

• Gender

  HDR

• Number of Contacts

  96

• Termination Method

  Solder

• Terminal Pitch (mm)

  2.54

• Body Orientation

  Straight

• Maximum Current Rating (A)

  1.5/Contact

• Maximum Voltage Rating

  1000VAC

• Insulation Resistance (MOhm)

  1000000

• Maximum Contact Resistance (mOhm)

  20

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• Mating Cycle (Cycles)

  400

• Packaging

  Tray

• Product Length (mm)

  95

• Product Depth (mm)

  11.1

• Product Height (mm)

  11.6

• Mounting

  Through Hole
