Connector Headers and PCB Receptacles

7840-0000PR

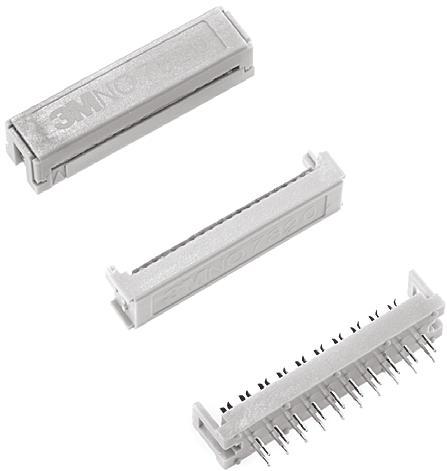

Conn IDC Connector HDR 40 POS 2.54mm Solder RA Side Entry Thru-Hole Box

3M

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• Automotive

  No

• PPAP

  No

• Type

  IDC Connector

• Gender

  HDR

• Number of Contacts

  40

• Number of Rows

  2

• Termination Method

  Solder

• Terminal Pitch (mm)

  2.54

• Body Orientation

  Right Angle

• Row Spacing (mm)

  2.54

• Maximum Current Rating (A)

  1

• Insulation Resistance (MOhm)

  1000

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  105

• Packaging

  Box

• Product Length (mm)

  55.9

• Product Depth (mm)

  7

• Product Height (mm)

  7.3

• Tail Length (mm)

  2.8

• Mounting

  Through Hole
