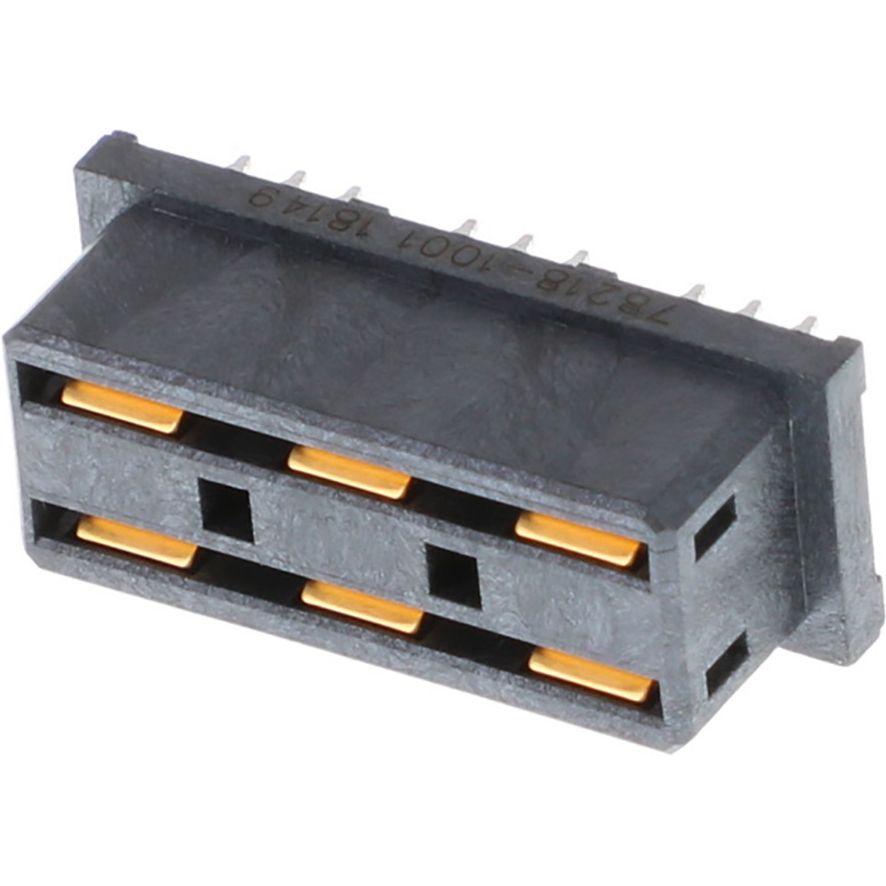

Connector Backplane

78218-1001

Conn Backplane Power RCP 6 POS 2mm/4mm Press Fit ST Thru-Hole Impact Tray

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• Automotive

  No

• PPAP

  No

• Type

  Backplane Power

• Gender

  RCP

• Number of Contacts

  6

• Termination Method

  Press Fit

• Terminal Pitch (mm)

  2/4

• Body Orientation

  Straight

• Maximum Current Rating (A)

  20/Contact

• Maximum Voltage Rating

  250V

• Insulation Resistance (MOhm)

  20000

• Maximum Contact Resistance (mOhm)

  1

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  85

• Mating Cycle (Cycles)

  200

• Packaging

  Tray

• Product Weight (g)

  3.762

• Product Length (mm)

  27.16

• Product Depth (mm)

  11

• Product Height (mm)

  9.8

• Tradename

  Impact

• Tail Length (mm)

  2.5

• Mounting

  Through Hole
