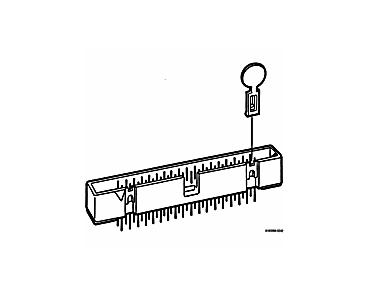

Amphenol Communications Solutions66506-066LFConnector Headers and PCB Receptacles
Quickie Header, Wire to Board Connector, 4 wall, Double Row, 10 Positions, 2.54 mm (0.1 in.), Vertical Header 0.76 um (30 uin) Gold Mating Plating
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| Shrouded Header (4 Sides) | |
| HDR | |
| 10 | |
| 2 | |
| Solder | |
| 2.54 | |
| Straight | |
| Center Slot | |
| 2.54 | |
| 3/Contact | |
| 1000VAC | |
| 100000 | |
| -65 | |
| 125 | |
| Tray | |
| 20.06 | |
| 8.76 | |
| 9.27 | |
| Quickie® | |
| Contact Plating Thickness | 0.76um |
| 2.76 | |
| Through Hole |
Mounting this shrouded 66506-066LF header connector from FCI to your printed circuit board can help you support multiple physical configuration options. This HDR connector's 10 contacts that are made out of phosphor bronze and plated with tin. It has a header type gender. It has a maximum voltage rating of 1000 VAC. This is a 2-row connector. It has a straight body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. This product is 19.8 mm long, 9.27 mm tall and 8.13 mm deep. 66506-066LF is housed in blue polyester. It uses the solder termination method. This connector has an operating temperature of -65 to 125 °C.
