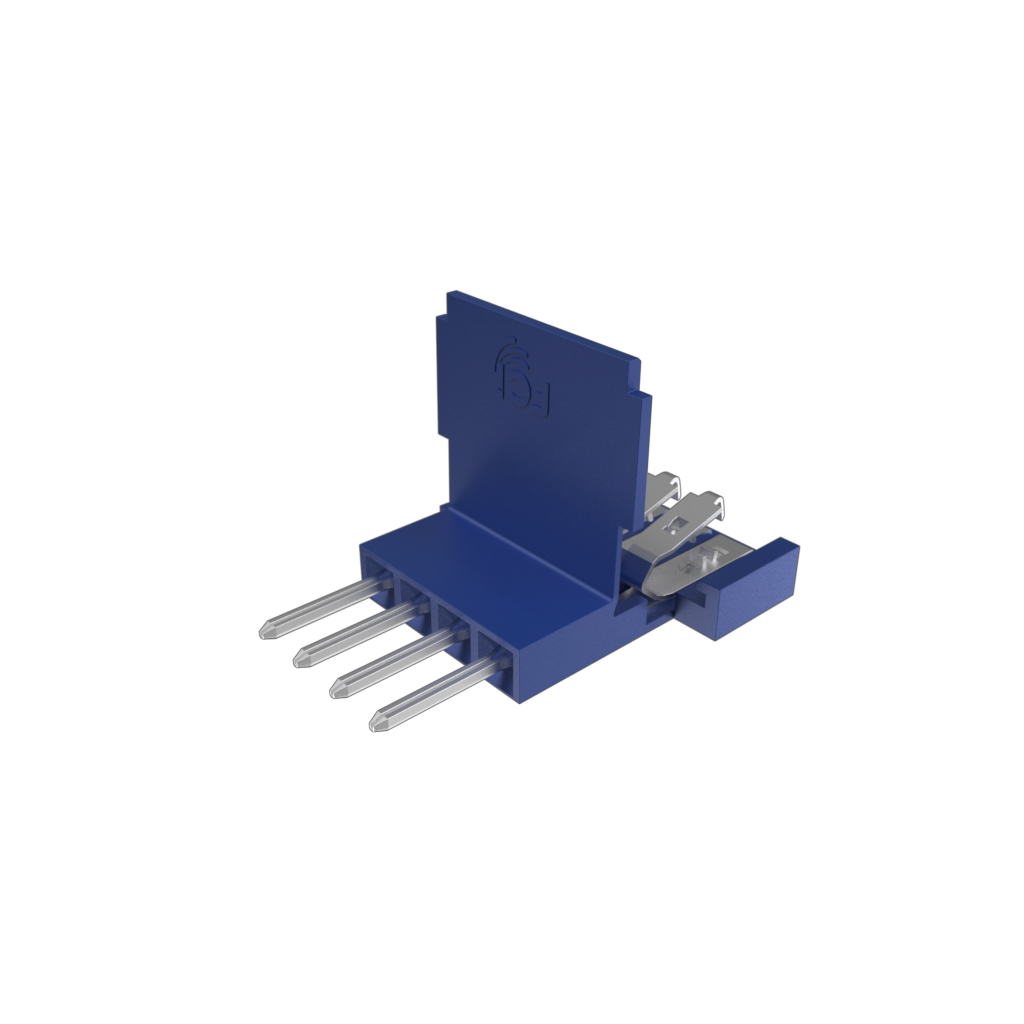

Amphenol Communications Solutions66226-004LFConnector FFC-FPC
Clincher™ Flex Connectors, Pin Assembly, Single row, 4 Positions, 2.54mm (.100in) Pitch
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| FFC/FPC Connector | |
| 4 | |
| 1 | |
| IDT | |
| 2.54 | |
| Straight | |
| PIN | |
| 2/Contact | |
| 500V | |
| 5000 | |
| 10 | |
| -65 | |
| 105 | |
| 100 | |
| Tray | |
| 14.99 | |
| 2.54 | |
| 21.34 | |
| Clincher™ | |
| Cable Mount |
FCI's clincher 66226-004LF flexible flat cable is a great option to consider when working with tightly constrained electronics projects. Its pitch is 2.54 mm. It has a maximum voltage rating of 500 V. This is a 1-row connector. It has a straight body orientation. This device has a maximum current rating of 2 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. This flexible flat cable has an operating temperature of -65 to 105 °C. This product is 14.99 mm long, 21.34 mm tall and 2.54 mm deep. 66226-004LF is housed in blue thermoplastic. It uses the idt termination method.
| EDA / CAD Models |
