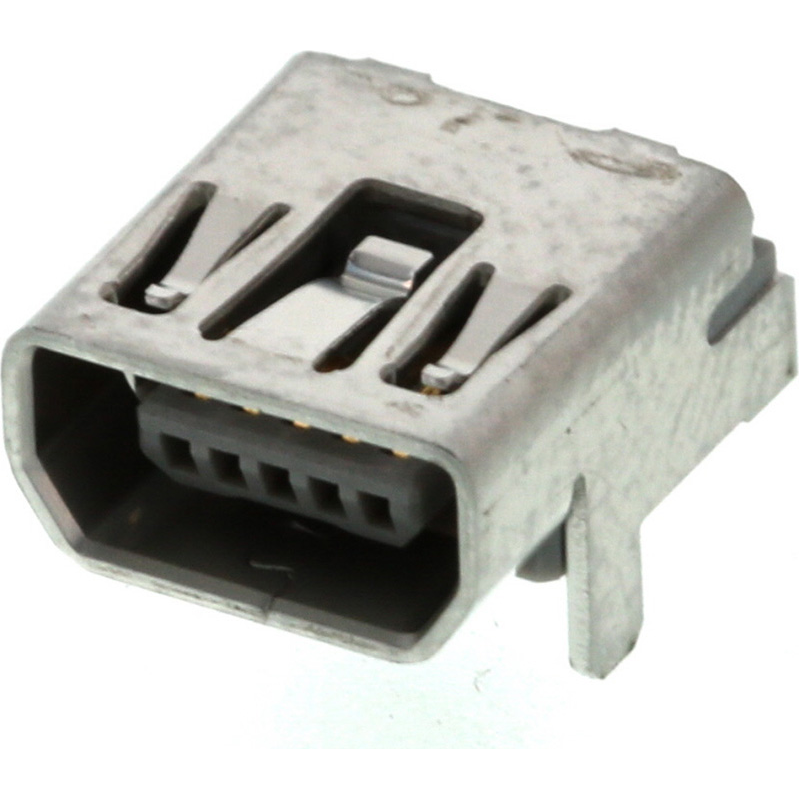

Connector USB

565790519

Conn Mini USB 2.0 Type AB RCP 5 POS 0.8mm Solder RA Thru-Hole 5 Terminal 1 Port Tray

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  NRND

• HTS

  8536.69.40.40

• Automotive

  No

• PPAP

  No

• Type

  Mini USB 2.0 Type AB

• Gender

  RCP

• Number of Terminals

  5

• Number of Contacts

  5

• Number of Ports

  1

• Termination Method

  Solder

• Terminal Pitch (mm)

  0.8

• Body Orientation

  Right Angle

• Maximum Current Rating (A)

  1/Contact

• Maximum Voltage Rating

  30VDC|30VAC

• Shell Material

  Copper Alloy

• Shell Plating

  Tin Over Nickel

• Minimum Operating Temperature (°C)

  -20

• Maximum Operating Temperature (°C)

  85

• Packaging

  Tray

• Product Weight (g)

  0.759

• Product Length (mm)

  7.7

• Product Depth (mm)

  9

• Product Height (mm)

  3.95

• Mounting

  Through Hole
