Connector Headers and PCB Receptacles

5055780771

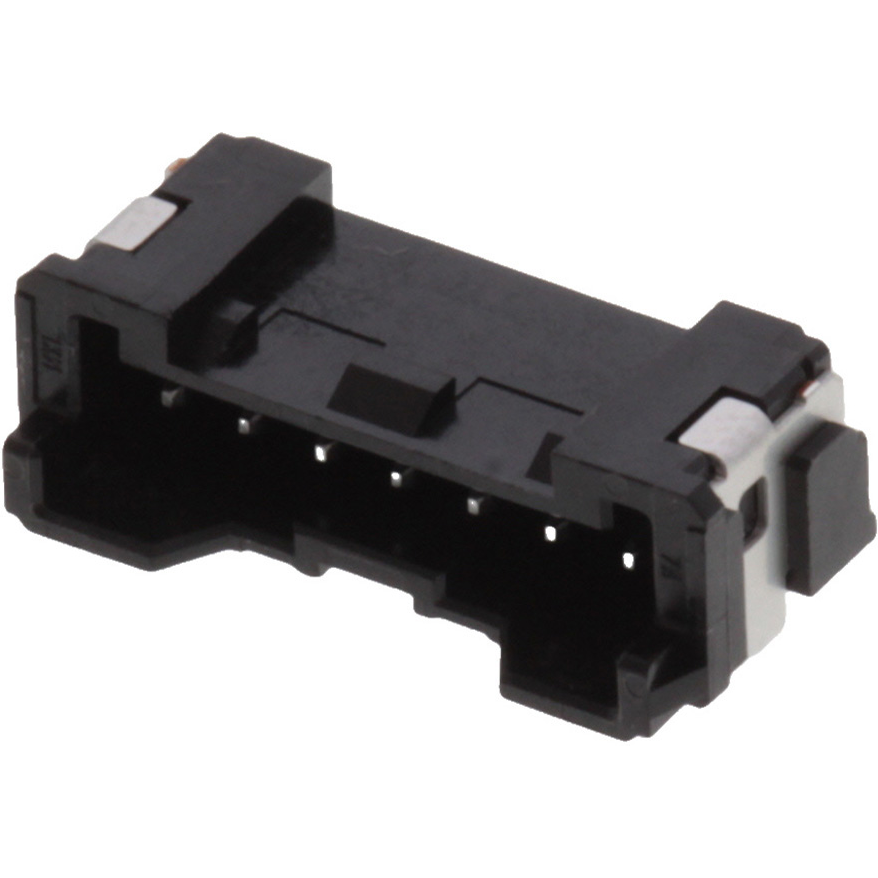

Conn Shrouded Header (4 Sides) HDR 7 POS 2mm Solder RA Side Entry SMD Micro-Lock Plus T/R

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• Automotive

  No

• PPAP

  No

• Type

  Shrouded Header (4 Sides)

• Gender

  HDR

• Number of Contacts

  7

• Number of Rows

  1

• Termination Method

  Solder

• Terminal Pitch (mm)

  2

• Body Orientation

  Right Angle

• Polarization Type

  Center Key/Dual Slot

• Maximum Current Rating (A)

  3.4/Contact

• Maximum Voltage Rating

  250VDC|250VAC

• Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  10

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  105

• Mating Cycle (Cycles)

  30

• Packaging

  Tape and Reel

• Product Weight (g)

  0.80696

• Product Length (mm)

  18

• Product Depth (mm)

  9.45

• Product Height (mm)

  5.9

• Tradename

  Micro-Lock Plus

• Contact Plating Thickness

  (1/1)um

• Mounting

  Surface Mount
