Connector Headers and PCB Receptacles

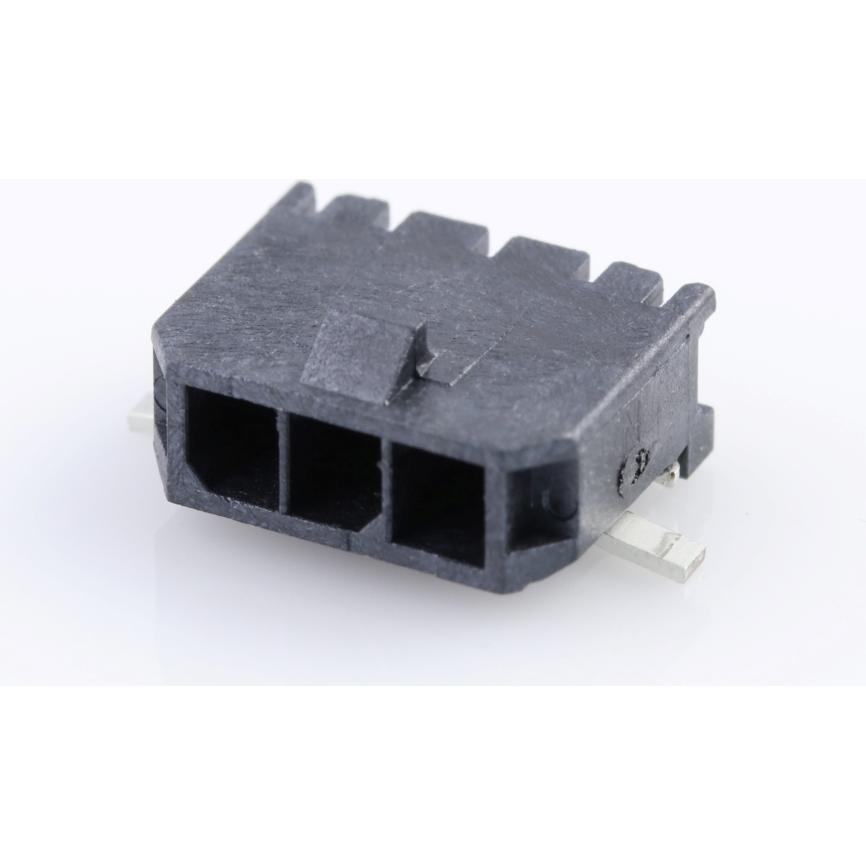

436500313

Conn Wire to Board HDR 3 POS 3mm Solder RA Side Entry SMD Micro-Fit 3.0 T/R

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• Automotive

  No

• PPAP

  No

• Type

  Wire to Board

• Gender

  HDR

• Number of Contacts

  3

• Number of Rows

  1

• Termination Method

  Solder

• Terminal Pitch (mm)

  3

• Body Orientation

  Right Angle

• Polarization Type

  Center Key

• Maximum Current Rating (A)

  8.5/Contact

• Maximum Voltage Rating

  600V

• Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  10

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• Mating Cycle (Cycles)

  30

• Packaging

  Tape and Reel

• Product Weight (g)

  0.688

• Product Length (mm)

  16.65

• Product Depth (mm)

  9.9

• Product Height (mm)

  5.57

• Tradename

  Micro-Fit 3.0

• Contact Plating Thickness

  0.38um

• Mounting

  Surface Mount
