Connector Headers and PCB Receptacles

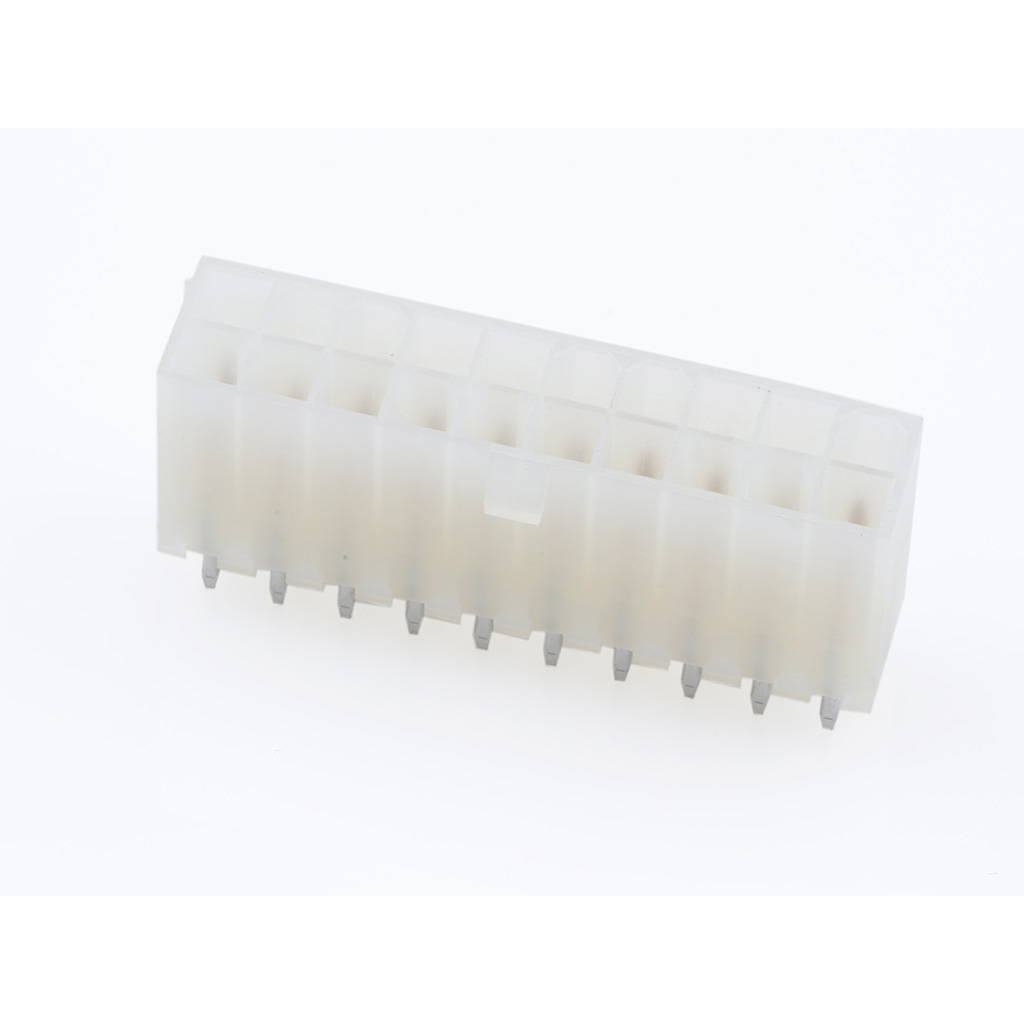

39290203

Conn Wire to Board HDR 20Power POS 4.2mm Solder ST Top Entry Thru-Hole Bag

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• Automotive

  No

• PPAP

  No

• Type

  Wire to Board

• Gender

  HDR

• Number of Contacts

  20Power

• Number of Rows

  2

• Termination Method

  Solder

• Terminal Pitch (mm)

  4.2

• Body Orientation

  Straight

• Polarization Type

  Center Key

• Row Spacing (mm)

  4.2

• Maximum Current Rating (A)

  9/Contact

• Maximum Voltage Rating

  600V

• Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  10

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  105

• Mating Cycle (Cycles)

  30

• Packaging

  Bag

• Product Length (mm)

  43.6

• Product Depth (mm)

  11

• Product Height (mm)

  12.8

• Tail Length (mm)

  3.5

• Mounting

  Through Hole
