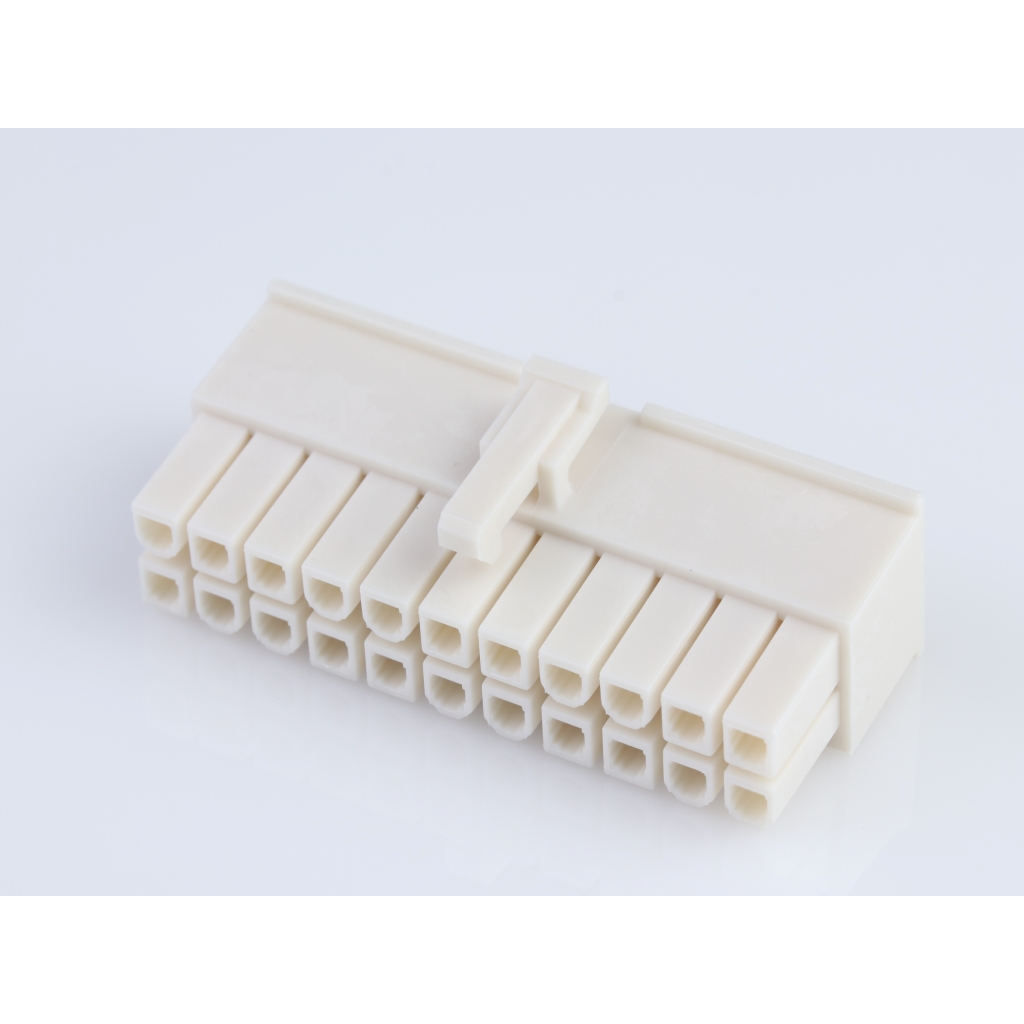

Connector Discrete Wire Housing

39-01-2225

Conn Housing RCP 22 POS 4.2mm Crimp ST Cable Mount Natural Mini-Fit Jr™ Bag

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.51

• Automotive

  No

• PPAP

  No

• Type

  Housing

• Gender

  RCP

• Number of Contacts

  22

• Number of Rows

  2

• Termination Method

  Crimp

• Terminal Pitch (mm)

  4.2

• Body Orientation

  Straight

• Maximum Current Rating (A)

  13/Contact

• Maximum Voltage Rating

  600VDC|600VAC

• Insulation Resistance (MOhm)

  1000

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  105

• Packaging

  Bag

• Product Weight (g)

  4.366

• Product Length (mm)

  47.4

• Product Height (mm)

  19.6

• Tradename

  Mini-Fit Jr™

• Keyed

  Yes

• Row Spacing (mm)

  4.2

• Mounting

  Cable Mount
