EEPROM

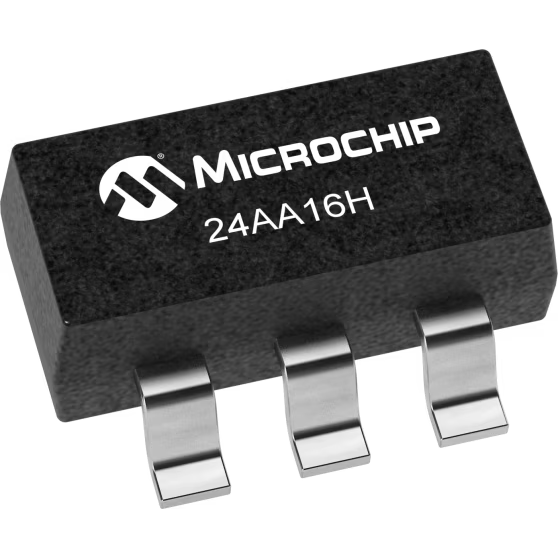

24AA16HT-I/OT

EEPROM Serial-I2C 16K-bit 8Block x 256 x 8 1.8V/2.5V/3.3V/5V 5-Pin SOT-23 T/R

Microchip Technology

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  COMPONENTS

• Automotive

  No

• PPAP

  No

• Chip Density (bit)

  16K

• Organization

  8Blockx256x8

• Programmability

  Yes

• Data Retention (Year)

  200(Min)

• Max. Access Time (ns)

  3500

• Maximum Operating Frequency (MHz)

  0.1

• Interface Type

  Serial-I2C

• Minimum Operating Supply Voltage (V)

  1.7

• Typical Operating Supply Voltage (V)

  1.8|2.5|3.3|5

• Maximum Operating Supply Voltage (V)

  5.5

• Programming Voltage (V)

  1.7 to 5.5

• Operating Current (mA)

  3

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Supplier Temperature Grade

  Industrial

• Hardware Data Protection

  Yes

• Packaging

  Tape and Reel

• Mounting

  Surface Mount

• Package Height

  1.3(Max) mm

• Package Width

  1.6 mm

• Package Length

  2.9 mm

• PCB changed

  5

• Standard Package Name

  SOT

• Supplier Package

  SOT-23

• Pin Count

  5

• Lead Shape

  Gull-wing
