Connector USB

2012670005

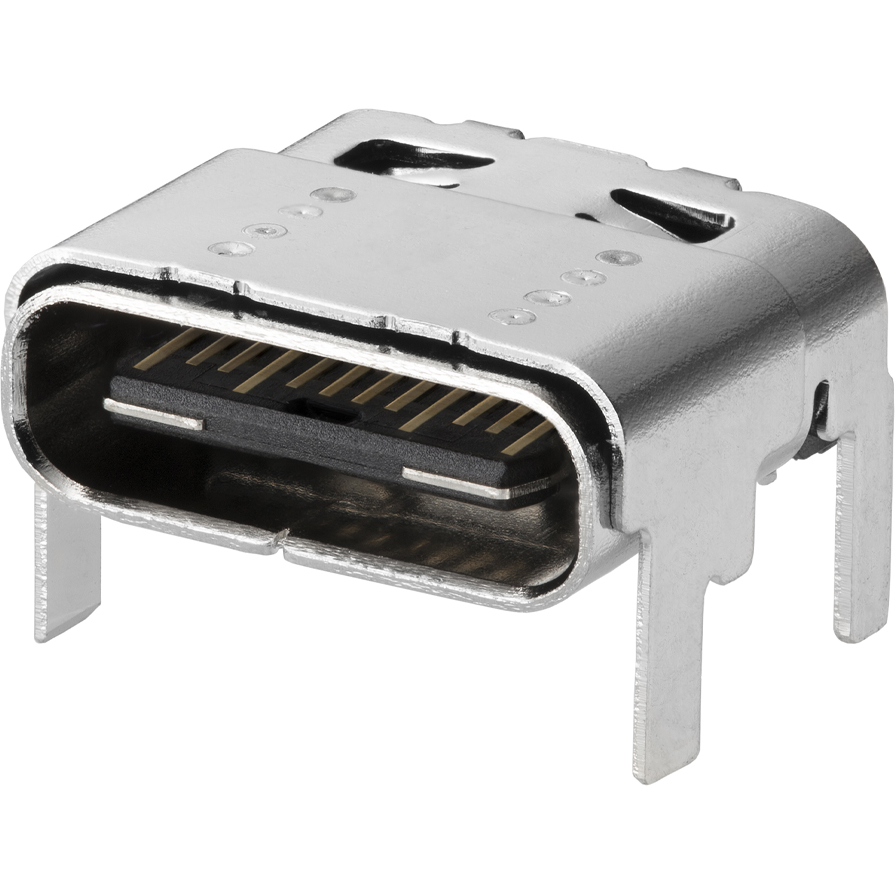

Conn USB 3.1 Type C RCP 24 POS 0.25mm/0.5mm Solder RA SMD 24 Terminal 1 Port USB 3.1 T/R

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8538.90.60.00

• Automotive

  No

• PPAP

  No

• Type

  USB 3.1 Type C

• Gender

  RCP

• Number of Terminals

  24

• Number of Contacts

  24

• Number of Ports

  1

• Termination Method

  Solder

• Terminal Pitch (mm)

  0.25/0.5

• Body Orientation

  Right Angle

• Maximum Current Rating (A)

  (5/1.25/0.25)/Contact

• Maximum Voltage Rating

  30VDC|30VAC

• Insulation Resistance (MOhm)

  100

• Maximum Contact Resistance (mOhm)

  40

• Mating Cycle (Cycles)

  20000

• Shell Material

  Stainless Steel

• Shell Plating

  Nickel

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  105

• Packaging

  Tape and Reel

• Product Weight (g)

  0.686

• Product Length (mm)

  9.39

• Product Depth (mm)

  8.3

• Tradename

  USB 3.1

• Product Height (mm)

  3.71

• Mounting

  Surface Mount
