Connector Headers and PCB Receptacles

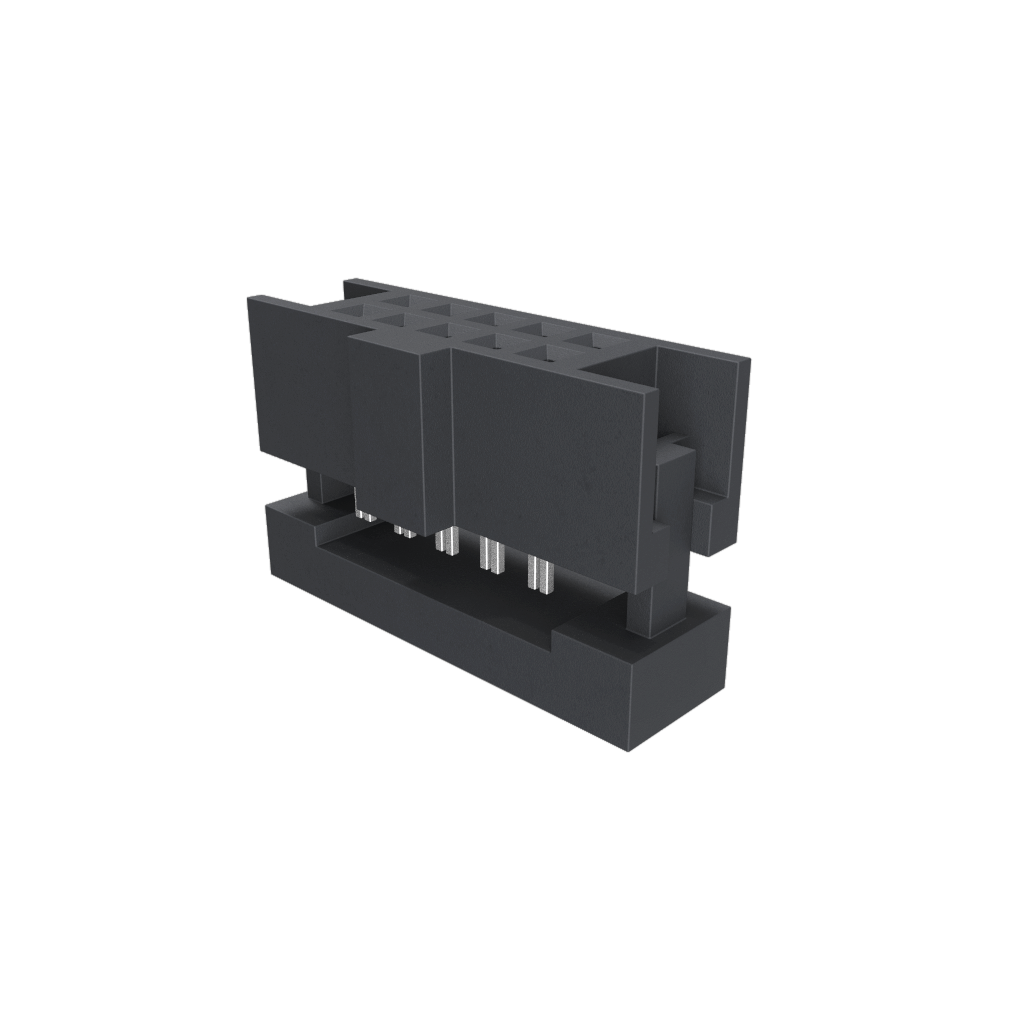

20021444-00010T1LF

Minitek127®, Wire to Board connector, IDC Receptacle, Double Row, 10 Positions, 1.27 mm (.050in) * 1.27 mm (.050in) Pitch

Amphenol Communications Solutions

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• Automotive

  No

• PPAP

  No

• Type

  IDC Connector

• Gender

  RCP

• Number of Contacts

  10

• Number of Rows

  2

• Termination Method

  IDT

• Terminal Pitch (mm)

  1.27

• Body Orientation

  Right Angle

• Row Spacing (mm)

  1.27

• Maximum Current Rating (A)

  1/Contact

• Maximum Voltage Rating

  125VAC

• Insulation Resistance (MOhm)

  100

• Maximum Contact Resistance (mOhm)

  50

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  105

• Mating Cycle (Cycles)

  100

• Packaging

  Tube

• Product Length (mm)

  10.58

• Product Depth (mm)

  3.75

• Mounting

  Cable Mount
