Amphenol Communications Solutions20021121-00006C4LFConnector Headers and PCB Receptacles
Minitek127®, Board to Board connector, Unshrouded vertical header, Surface Mount, Double Row, 6Positions, 1.27mm (0.5inch) pitch
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| SVHC | Yes |
| Automotive | No |
| PPAP | Yes |
| Unshrouded Header | |
| HDR | |
| 6 | |
| 2 | |
| Solder | |
| 1.27 | |
| Straight | |
| 1.27 | |
| 1/Contact | |
| 125VAC | |
| 1000 | |
| 30 | |
| -55 | |
| 125 | |
| 100 | |
| Tape and Reel | |
| 3.81 | |
| 5.5 | |
| 4.55 | |
| Surface Mount |

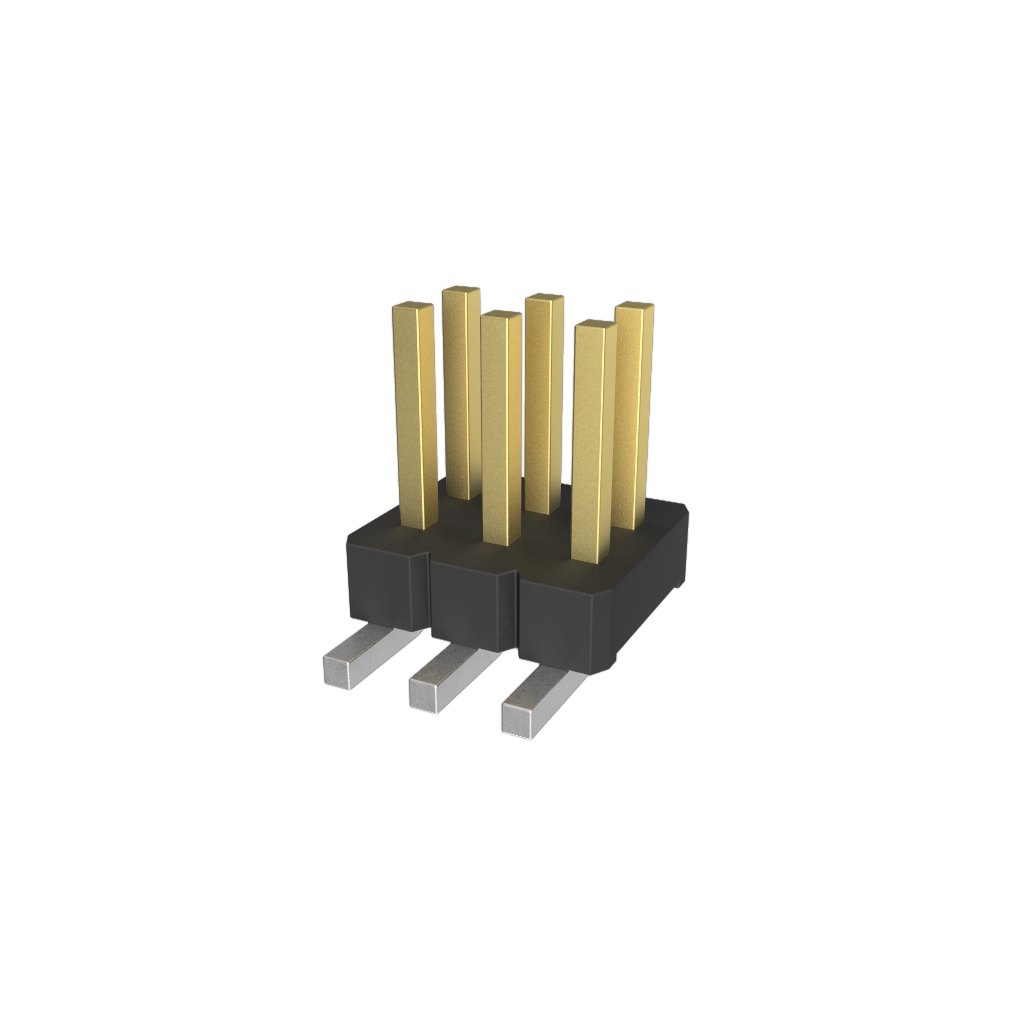

Support physical configuration options for jumper posts by mounting this unshrouded 20021121-00006C4LF header connector from FCI. This HDR connector's 6 contacts that are made out of copper alloy and plated with gold over nickel. It has a header type gender. Its pitch is 1.27 mm. This is a 2-row connector. It has a straight body orientation. It has a maximum voltage rating of 125 VAC. This device has a maximum current rating of 1 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It uses the solder termination method. This product is 3.81 mm long, 3.5 mm tall and 3.4 mm deep. This connector has an operating temperature of -40 to 85 °C. 20021121-00006C4LF is housed in black thermoplastic.
