Connector Headers and PCB Receptacles

20021111-00012T4LF

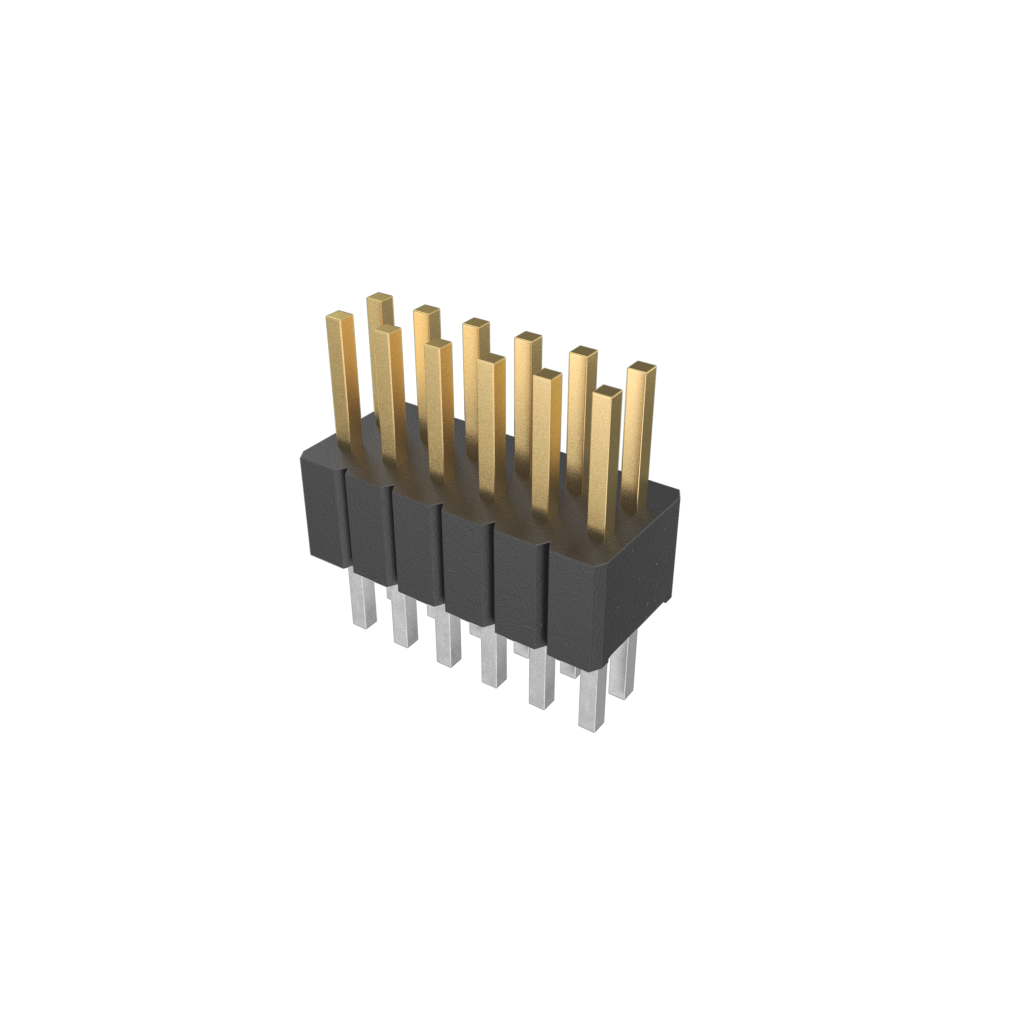

Minitek127®, Board to Board connector, Unshrouded Vertical Header, Through Hole, Double Row, 12 Positions, 1.27mm (0.050in) pitch

Amphenol Communications Solutions

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• Automotive

  No

• PPAP

  No

• Type

  Unshrouded Header

• Gender

  HDR

• Number of Contacts

  12

• Number of Rows

  2

• Termination Method

  Solder

• Terminal Pitch (mm)

  1.27

• Body Orientation

  Straight

• Row Spacing (mm)

  1.27

• Maximum Current Rating (A)

  1/Contact

• Maximum Voltage Rating

  125VAC

• Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  50

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• Mating Cycle (Cycles)

  100

• Packaging

  Tube

• Product Length (mm)

  7.62

• Product Depth (mm)

  3.4

• Product Height (mm)

  5.5

• Tradename

  Minitek127®

• Tail Length (mm)

  2.3

• Mounting

  Through Hole
