Connector Headers and PCB Receptacles

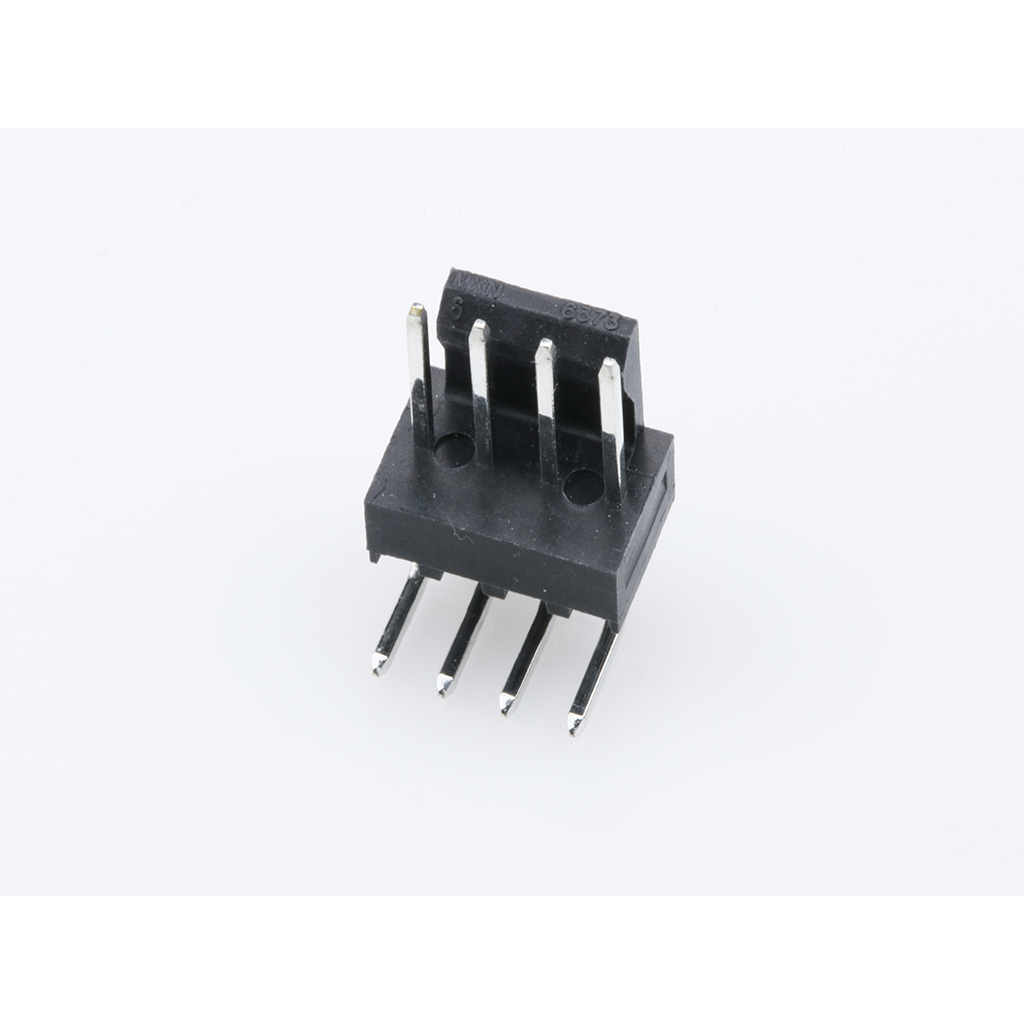

1718570004

Conn Wire to Board HDR 4 POS 2.54mm Solder RA Side Entry Thru-Hole KK Bag

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• Automotive

  No

• PPAP

  No

• Type

  Wire to Board

• Gender

  HDR

• Number of Contacts

  4

• Number of Rows

  1

• Termination Method

  Solder

• Terminal Pitch (mm)

  2.54

• Body Orientation

  Right Angle

• Maximum Current Rating (A)

  4/Contact

• Maximum Voltage Rating

  500V

• Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  10

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  105

• Mating Cycle (Cycles)

  25

• Packaging

  Bag

• Product Weight (g)

  0.521

• Product Length (mm)

  10.01

• Product Depth (mm)

  12.96

• Product Height (mm)

  6.35

• Tradename

  KK

• Contact Plating Thickness

  (1.52/1.27)mm

• Tail Length (mm)

  2.54

• Mounting

  Through Hole
