Connector Headers and PCB Receptacles

10132797-011100LF

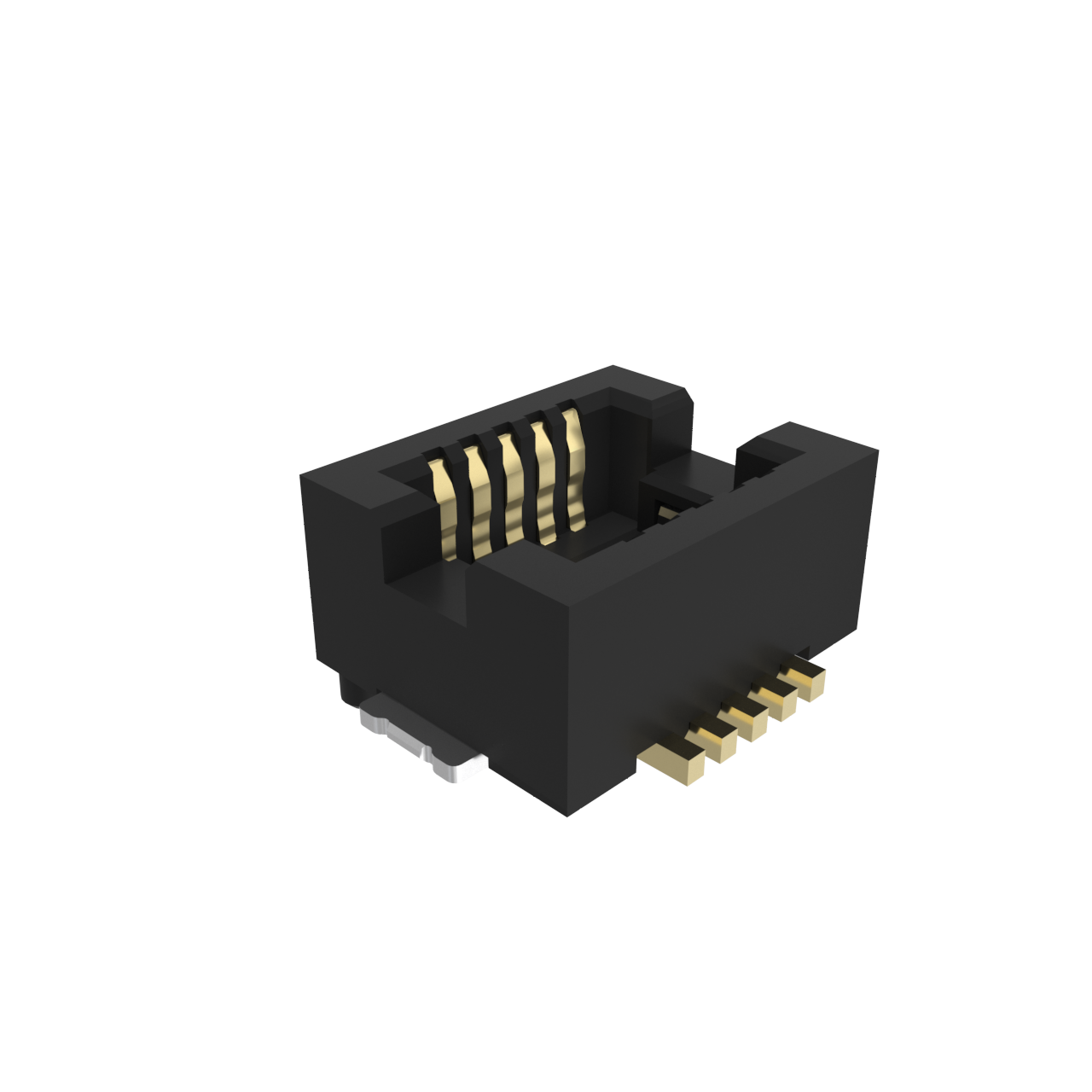

BergStak® 0.5mm Mezzanine Connector, Board To Board Connectors, 10 position, 2.3mm height plug connector

Amphenol Communications Solutions

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• Automotive

  Yes

• PPAP

  Unknown

• Type

  Board to Board

• Gender

  HDR

• Number of Contacts

  10

• Number of Rows

  2

• Termination Method

  Solder

• Terminal Pitch (mm)

  0.5

• Body Orientation

  Straight

• Maximum Current Rating (A)

  0.5/Contact

• Maximum Voltage Rating

  50VAC

• Insulation Resistance (MOhm)

  500

• Maximum Contact Resistance (mOhm)

  50

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• Mating Cycle (Cycles)

  50

• Packaging

  Tape and Reel

• Product Length (mm)

  5.5

• Product Depth (mm)

  4.6

• Product Height (mm)

  2.3

• Mounting

  Surface Mount
