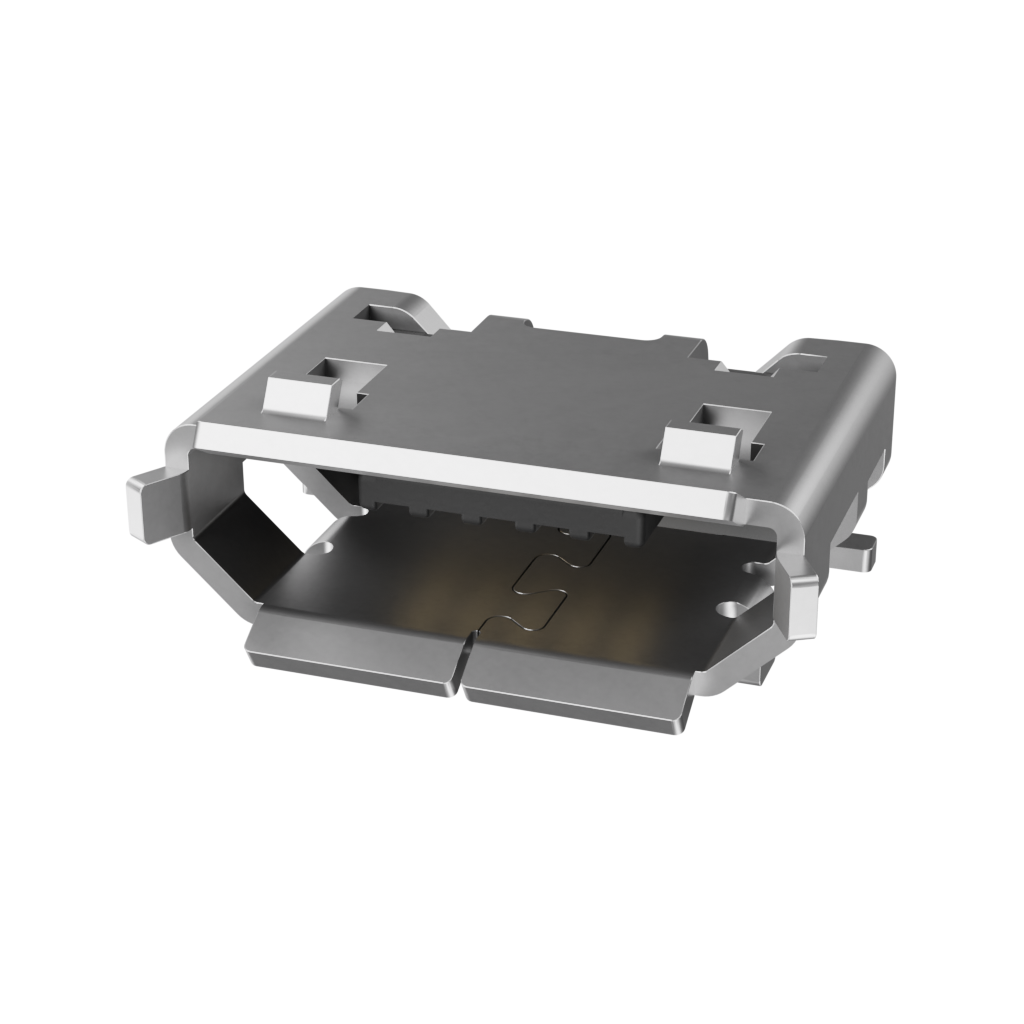

Connector USB

10103594-0001LF

Micro USB 2.0, Input Output Connectors, B TYPE RECEPTACLE

Amphenol Communications Solutions

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  COMPONENTS

• SVHC

  Yes

• Automotive

  No

• PPAP

  No

• Type

  Micro USB 2.0 Type B

• Gender

  RCP

• Number of Terminals

  5

• Number of Contacts

  5

• Number of Ports

  1

• Termination Method

  Solder

• Terminal Pitch (mm)

  0.65

• Body Orientation

  Right Angle

• Maximum Current Rating (A)

  1.8/Contact

• Maximum Voltage Rating

  100VAC

• Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  30

• Mating Cycle (Cycles)

  10000

• Shell Material

  Stainless Steel

• Shell Plating

  Tin Over Nickel

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  80

• Packaging

  Tape and Reel

• Product Length (mm)

  8.04

• Product Depth (mm)

  5.62

• Product Height (mm)

  2.99

• Mounting

  Surface Mount
