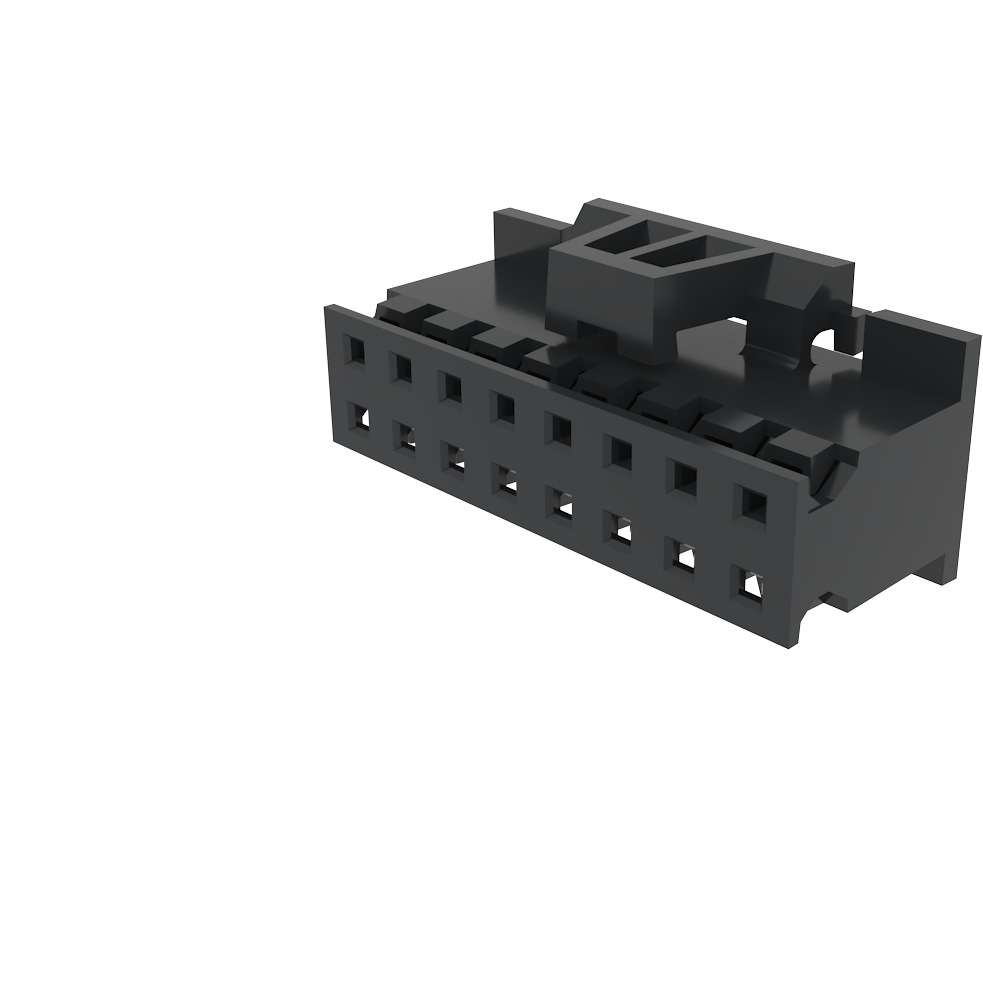

Amphenol Communications Solutions10073599-016LFConnector Discrete Wire Housing
Active Latch Housing, Double Row, 16 Positions, 2.00mm (0.079in) Pitch
| Compliant | |
| EAR99 | |
| Active | |
| 8538.90.81.80 | |
| Automotive | No |
| PPAP | No |
| Housing | |
| RCP | |
| 16 | |
| 2 | |
| Crimp | |
| 2 | |
| Straight | |
| 2/Contact | |
| 1000 | |
| -55 | |
| 125 | |
| 50 | |
| Bag | |
| 16.54 | |
| 7.1 | |
| 7.6 | |
| Minitek® | |
| Cable Mount |
This 10073599-016LF discrete wire housing from FCI is designed for both small electronic devices as well as larger power applications. This RCP connector has 16 RCP contacts. This is a 2-row connector. It has a straight body orientation. Its pitch is 2 mm. It has a receptacle type gender. This device has a maximum current rating of 2 A/contact. This product is 16.54 mm long, 7.6 mm tall and 7.1 mm deep. This rectangle connector has an operating temperature of -55 to 125 °C. 10073599-016LF is housed in black polyamide 6/6.
