10051922-1510ELF

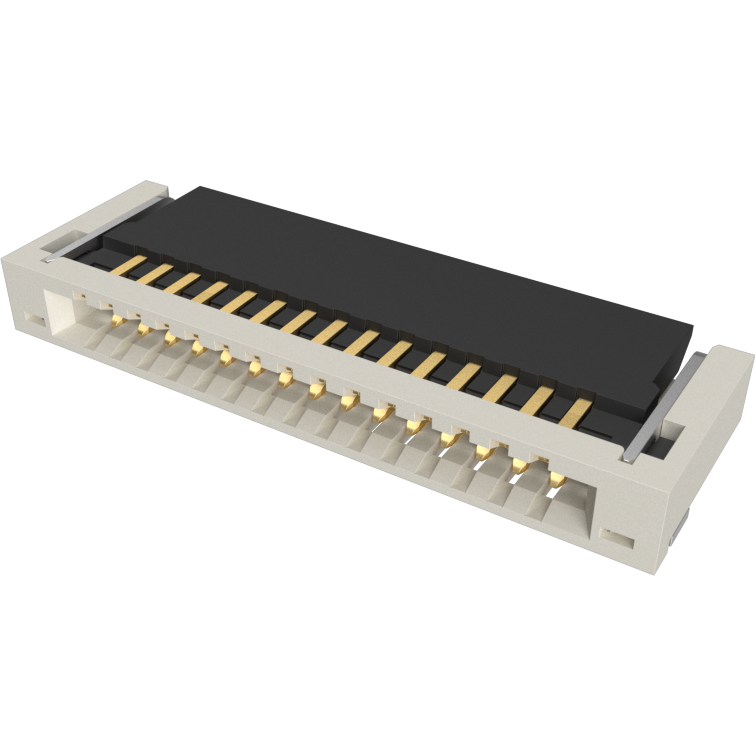

0.50mm Flex Connector, VLL Series, 15 Position, Lower Side Contact, Side Entry Surface Mount ZIF Connector, Lead Free Type

Amphenol Communications Solutions

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  COMPONENTS

• Automotive

  No

• PPAP

  No

• Type

  FPC Connector

• Number of Contacts

  15

• Number of Rows

  1

• Termination Method

  Solder

• Terminal Pitch (mm)

  0.5

• Body Orientation

  Right Angle

• Contact Gender

  SKT

• Maximum Current Rating (A)

  0.5/Contact

• Maximum Voltage Rating

  50VDC|50VAC

• Insulation Resistance (MOhm)

  100

• Maximum Contact Resistance (mOhm)

  30

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  85

• Mating Cycle (Cycles)

  20

• Packaging

  Tape and Reel

• Product Length (mm)

  10

• Product Depth (mm)

  3.75

• Product Height (mm)

  1.3

• Mounting

  Surface Mount
