10029449-111RLF

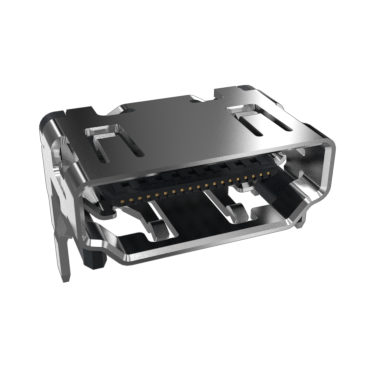

HDMI, Input Output Connectors, Receptacle, Type A, Right Angle, Surface Mount, 19 Positions
Amphenol Communications SolutionsThe Amphenol ICC Connector Audio and Video category is HDMI Type A. It has a receptacle type gender. It has a right angle body orientations. The connector has 19 contacts that are made with phosphor bronze and plated with gold. It has a pitch of 0.5mm. It has a maximum voltage rating of 40 VAC. The device has maximum current rating of 0.5A/contact. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. The operating temperature range of the component is -55°C to +85°C. Its 19 terminals use the solder terminal method.
Features and Benefits:
• This product is 15.7mm(Long) x 6.18mm(Tall) x 9.5mm(Deep)
• Sync up your sound and picture
• Right angle and straight versions
• Metal shell for better EMI shielding protection
• Excellent durability
• Low impedance mismatch
• Straight version features additional groundings pins for enhanced EMI performance.
Application:
• LCD Displays
• Digital TV
• Set Top Box
• DVD players and recorders
• Entertainment PC’s
Product Technical Specifications
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
COMPONENTS
SVHC
Yes
Automotive
No
PPAP
No
Type
HDMI Type A
Gender
RCP
Number of Contacts
19
Terminal Pitch (mm)
0.5
Number of Terminals
19
Number of Ports
1
Termination Method
Solder
Body Orientation
Right Angle
Maximum Current Rating (A)
0.5/Contact
Maximum Voltage Rating
40VAC
Insulation Resistance (MOhm)
100
Maximum Contact Resistance (mOhm)
30
Minimum Operating Temperature (°C)
-55
Maximum Operating Temperature (°C)
85
Mating Cycle (Cycles)
10000
Shell Material
Stainless Steel
Shell Plating
Nickel
Housing Color
Black
Packaging
Tape and Reel
Product Length (mm)
15.7
Product Depth (mm)
9.5
Product Height (mm)
6.18
Mounting
Surface Mount
Housing Material
Thermoplastic
Contact Plating
Gold
Contact Material
Phosphor Bronze
