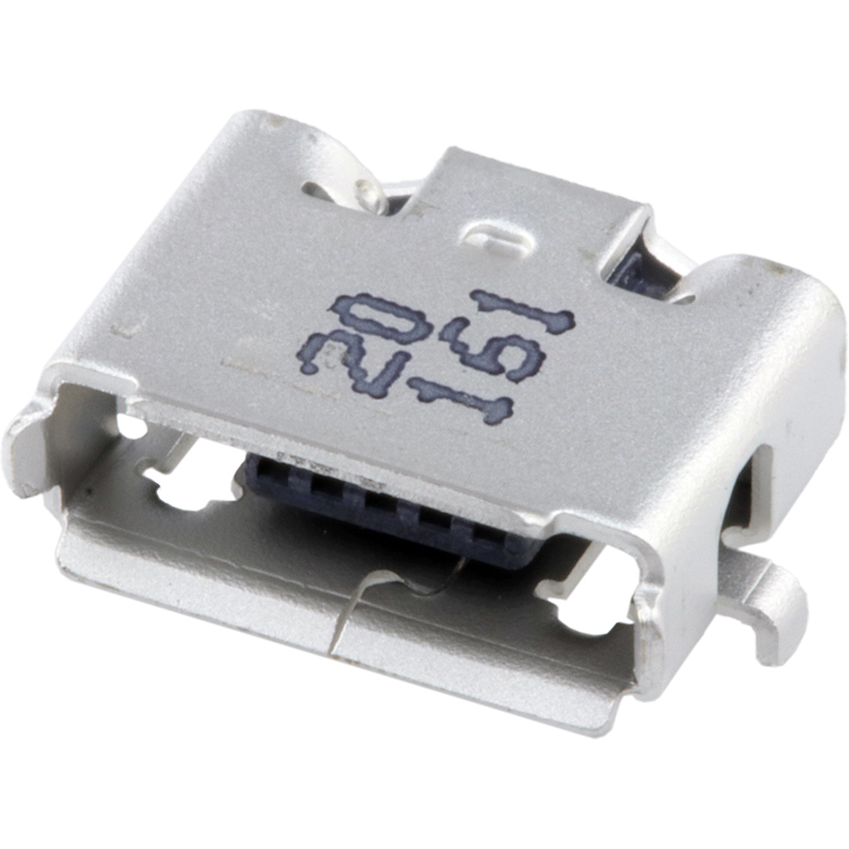

Molex0475900001Connector USB
Conn Micro USB 2.0 Type AB RCP 5 POS 0.65mm Solder RA SMD 5 Terminal 1 Port T/R
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| Micro USB 2.0 Type AB | |
| RCP | |
| 5 | |
| 5 | |
| 1 | |
| Solder | |
| 0.65 | |
| Right Angle | |
| (1.8/1)/Contact | |
| 30VAC | |
| 1000 | |
| 30 | |
| 10000 | |
| Stainless Steel | |
| Tin Over Nickel | |
| -30 | |
| 85 | |
| Tape and Reel | |
| 0.265 | |
| 5.9 | |
| 3 | |
| Surface Mount |
Utilize your audio and video with the micro USB type ab 0475900001 audio and video connector from Molex. This RCP connector's 5 contacts that are made out of copper alloy and plated with gold over palladium nickel over nickel. It has a maximum voltage rating of 30 VAC. Its pitch is 0.65 mm. It has a receptacle type gender. It has a right angle body orientation. This connector has a single port. This device has a maximum current rating of 1.8 A/contact. 0475900001 is housed in liquid crystal polymer. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 8.65 mm long, 3 mm tall and 5.9 mm deep. This part has a minimum operating temperature of -30 °C and a maximum of 85 °C. Its 5 terminals use the solder termination method.
