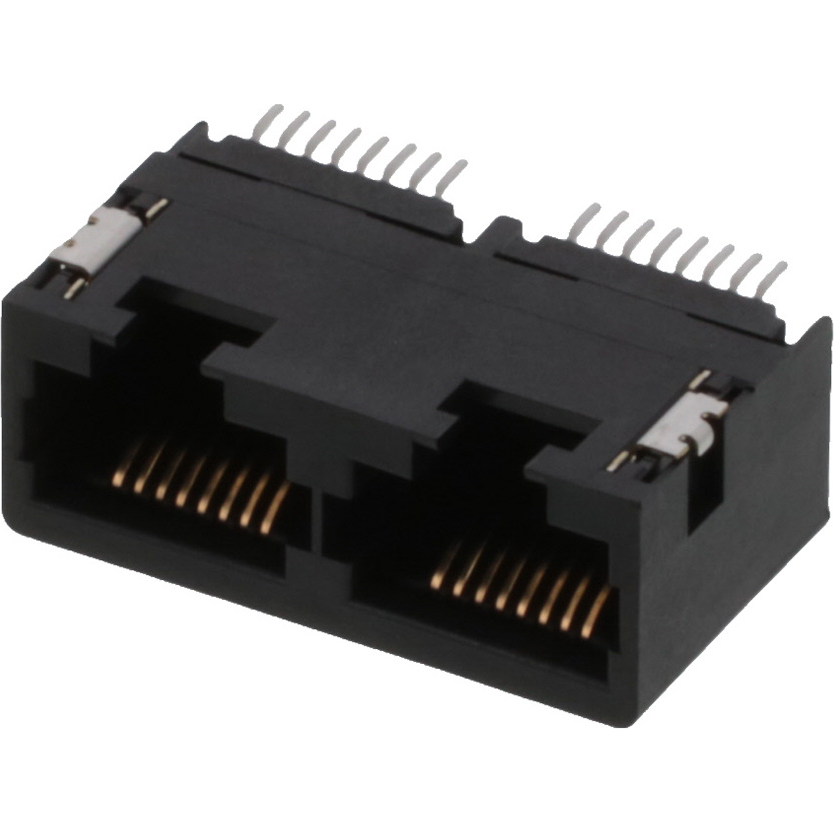

Connector Telephone and Telecom

0441930003

Conn RJ-45 F 16 POS 1.27mm Solder RA SMD 16 Terminal 2 Port Cat 3/Cat 4 T/R

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  COMPONENTS

• Automotive

  No

• PPAP

  No

• Type

  RJ-45

• Gender

  F

• Number of Terminals

  16

• Number of Contacts

  16

• Number of Ports

  2

• Number of Loaded Positions

  16

• Category Number

  Cat 3/Cat 4

• Termination Method

  Solder

• Terminal Pitch (mm)

  1.27

• Body Orientation

  Right Angle

• Maximum Current Rating (A)

  1.5/Contact

• Maximum Voltage Rating

  125V

• Maximum Contact Resistance (mOhm)

  10

• Mating Cycle (Cycles)

  500

• Integrated Magnetics

  No

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  80

• Packaging

  Tape and Reel

• Product Style

  Multiport

• Product Weight (g)

  5.175

• Product Length (mm)

  30.48

• Product Depth (mm)

  18.39

• Product Height (mm)

  11.8

• Mounting

  Surface Mount
