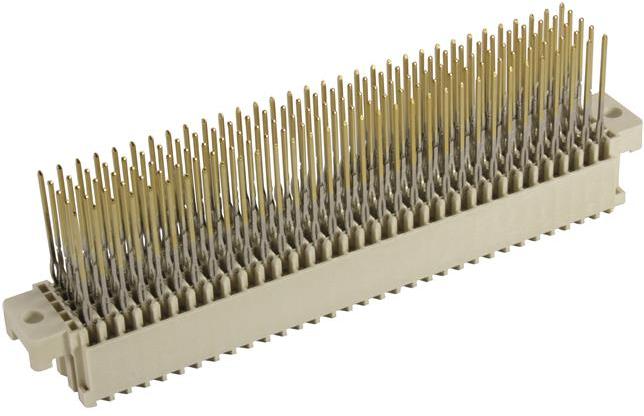

Connector Backplane

02021602301

Conn DIN 41612 F 160 POS 2.54mm Press Fit ST Thru-Hole Box

HARTING Technology Group

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• Automotive

  No

• PPAP

  No

• Type

  DIN 41612

• Gender

  F

• Number of Contacts

  160

• Termination Method

  Press Fit

• Terminal Pitch (mm)

  2.54

• Body Orientation

  Straight

• Maximum Current Rating (A)

  1

• Insulation Resistance (MOhm)

  10000

• Maximum Contact Resistance (mOhm)

  20/30

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  105

• Mating Cycle (Cycles)

  250

• Packaging

  Box

• Product Weight (g)

  29.2

• Product Length (mm)

  94.8

• Product Depth (mm)

  15.9

• Product Height (mm)

  11.58

• Mounting

  Through Hole
