Clock Buffers and Drivers

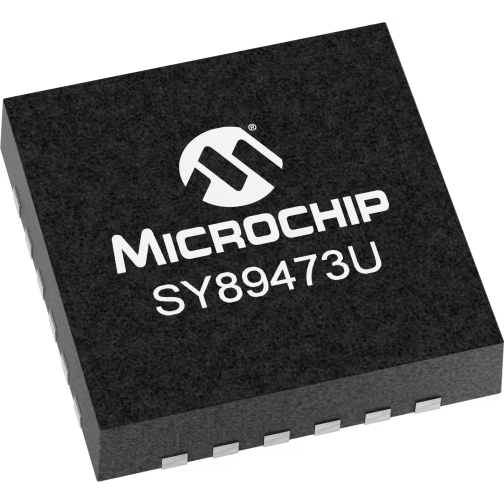

SY89473UMG

Clock Multiplexer 2-OUT 2-IN 1:2 24-Pin QFN EP Tube

Microchip Technology

产品技术规范

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8542.39.00.90

• Automotive

  No

• PPAP

  No

• Type

  Clock Multiplexer

• Fanout

  1:2

• Number of Outputs per Chip

  2

• Maximum Input Frequency (MHz)

  3000(Typ)

• Maximum Propagation Delay Time @ Maximum CL (ns)

  0.5@2.375V to 3.63V

• Absolute Propagation Delay Time (ns)

  0.6

• Input Logic Level

  CML|LVDS|PECL

• Output Logic Level

  LVPECL

• Minimum Operating Supply Voltage (V)

  2.375

• Typical Operating Supply Voltage (V)

  2.5|3.3

• Maximum Operating Supply Voltage (V)

  3.6

• Maximum Quiescent Current (mA)

  65

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Supplier Temperature Grade

  Industrial

• Packaging

  Tube

• Mounting

  Surface Mount

• Package Height

  0.85

• Package Width

  4

• Package Length

  4

• PCB changed

  24

• Standard Package Name

  QFN

• Supplier Package

  QFN EP

• Pin Count

  24

• Lead Shape

  No Lead
