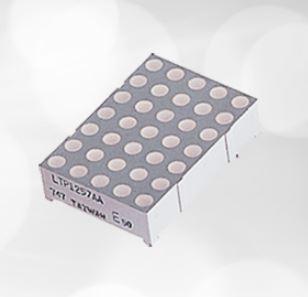

LED 显示器点矩阵

LTP-757G

Numeric Displays Module 35LED Green Anode Row Cathode Column 12-Pin DIP

Lite-On Technology

产品技术规范

• 欧盟RoHS指令

  Compliant with Exemption

• 美国出口管制分类ECCN编码

  EAR99

• 环保无铅

  Active

• 美国海关商品代码

  8531.20.00.20

• Automotive

  No

• PPAP

  No

• Type

  Module

• Color

  Green

• Number of LEDs

  35

• Digit Size (in)

  0.7

• Character Displayed

  Numeric

• Intensity (ucd)

  2000

• Dominant Wavelength (nm)

  569

• Peak Wavelength (nm)

  565

• Configuration

  Anode Row Cathode Column

• Maximum Forward Current (mA)

  11

• Maximum Reverse Current (uA)

  100

• Test Current (mA)

  20

• Maximum Reverse Voltage (V)

  5

• Maximum Forward Voltage (V)

  3.7

• Maximum Power Dissipation (mW)

  32

• Minimum Operating Temperature (°C)

  -35

• Maximum Operating Temperature (°C)

  85

• Mounting

  Through Hole

• Package Height

  6.3

• Package Width

  12.66

• Package Length

  17.74

• PCB changed

  12

• Standard Package Name

  DIP

• Supplier Package

  DIP

• Pin Count

  12

• Lead Shape

  Through Hole
