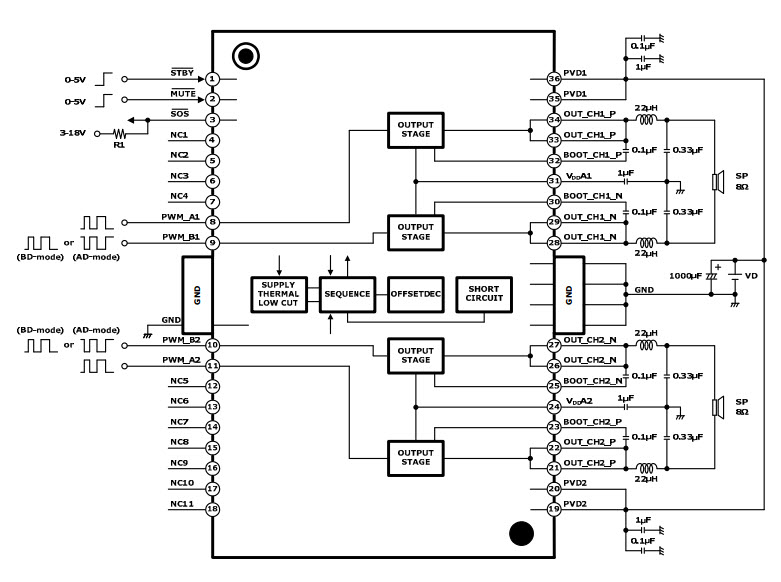

Typical Application Circuit for LV4924VH Bi-CMOS IC Class-D Audio power Amplifier Power cell BTL 10W+2ch

Reference Design using part LV4924VH by onsemi

Manufacturer

onsemi
  • Application Category
    Audio
  • Product Type
    Audio Power Amplifier

For End Products

  • Audio

Description

  • Typical Application Circuit for LV4924VH Bi-CMOS IC Class-D Audio power Amplifier Power cell BTL 10W+2ch

Key Features

  • Amplifier Type
    Class-D
