200V DC to DC Single Output Power Supply for Portable

Reference Design using part CS5171 by onsemi

Manufacturer

onsemi
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

Description

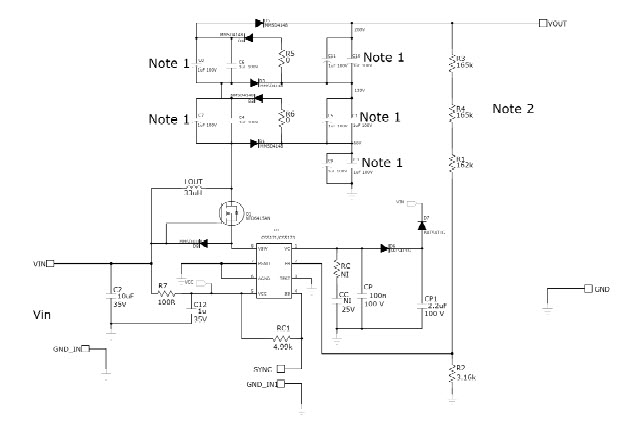

  • CS5171, high voltage DC to DC boost application. The module has an input voltage range from 3.3V to 30V. The module provides 1 regulated output of 200V but can be configured for different outputs

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    2.7 to 30 V
  • Output Voltage
    200 V
  • Output Current
    0.02 A
  • Efficiency
    78 %
  • Topology
    Boost
