Capacitive Encoders

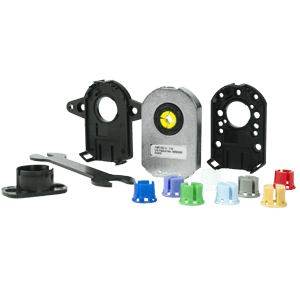

AMT102-V

Capacitive Encoder Rotary Incremental Straight Digital Square Wave Cable

Same Sky (formerly CUI Devices)

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8543.70.98.60

• Automotive

  No

• PPAP

  No

• Number of Channels

  3

• Motion Type

  Rotary

• Terminal Type

  Cable

• Maximum Operating Speed

  7500r/min

• Encoder Signal

  Digital Square Wave

• Minimum Operating Supply Voltage

  3.6VDC

• Typical Operating Supply Voltage

  5VDC

• Maximum Operating Supply Voltage

  5.5VDC

• Programmability

  Yes

• Maximum Operating Temperature (°C)

  100

• Minimum Operating Temperature (°C)

  -40

• Encoder Code

  Quadrature

• Encoder Reading

  Incremental

• Shock Rating

  50G

• Body Orientation

  Straight

• Product Weight (g)

  20.5

• Product Length (mm)

  28.77

• Product Depth (mm)

  9

• Product Height (mm)

  43.38
