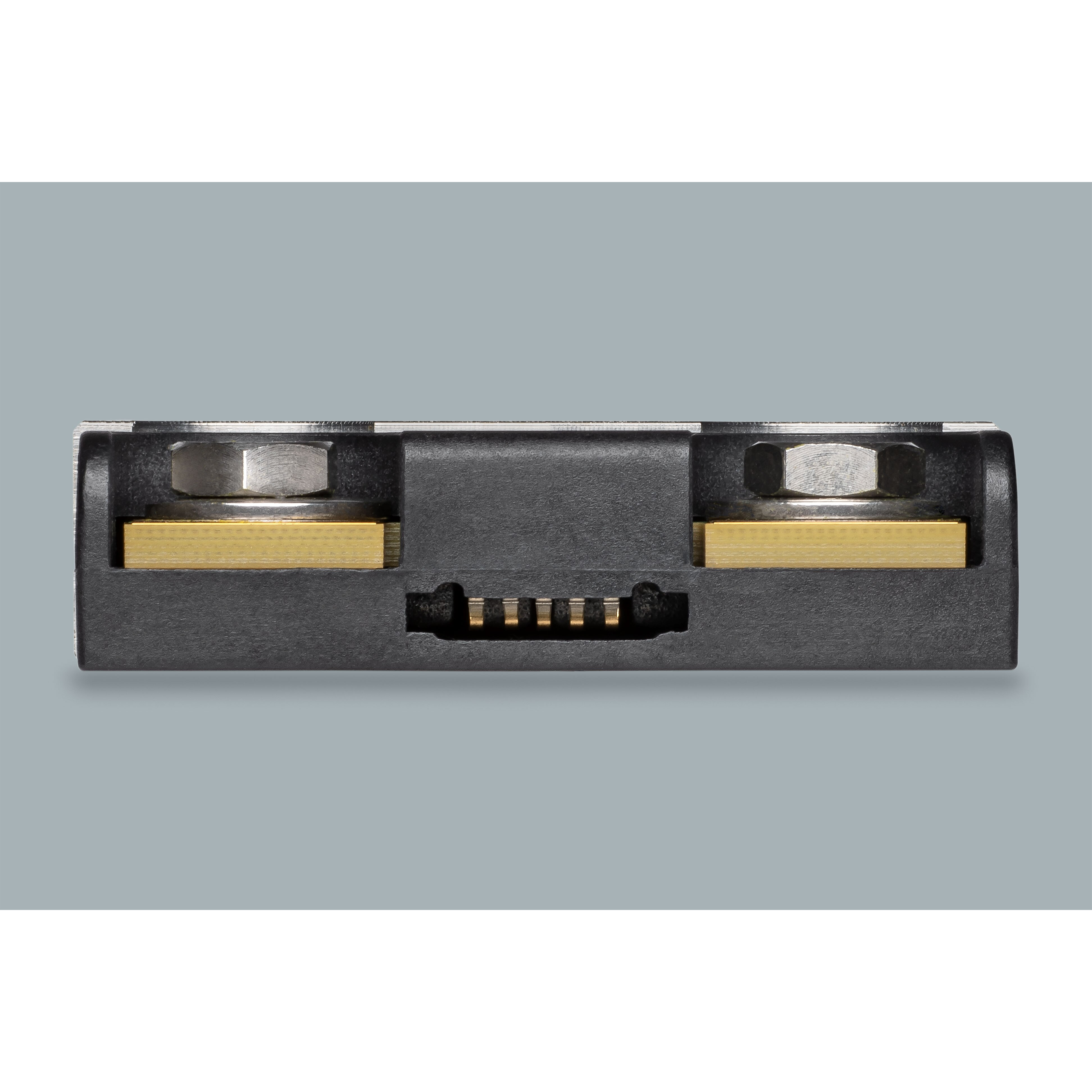

DC to DC Converter and Switching Regulator Module

DCM3414V50M06A8C01

Module DC-DC 28VIN 1-OUT -0.5V to 7.2V 36A 180W 9-Pin Brick

Vicor

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8542.39.00.90

• Automotive

  No

• PPAP

  No

• Type

  Inverting|Non-Inverting|Step Down|Step Up

• Isolation

  Isolated

• Number of Outputs

  1

• Minimum Input Voltage (V)

  16

• Typical Input Voltage (V)

  28

• Maximum Input Voltage (V)

  50

• Output Voltage (V)

  -0.5 to 7.2

• Output Current (A)

  36

• Output Power (W)

  180(Min)

• Minimum Isolation Voltage

  1500VDC

• Input/Output Type

  DC/DC

• Switching Regulator

  No

• Efficiency (%)

  90.5(Typ)

• Minimum Operating Temperature (°C)

  -20

• Maximum Operating Temperature (°C)

  125

• Product Weight (g)

  101

• Output Type

  Adjustable

• Mounting

  Chassis

• Package Height

  9.3

• Package Width

  35.54

• Package Length

  85.93

• PCB changed

  9

• Supplier Package

  Brick

• Pin Count

  9
