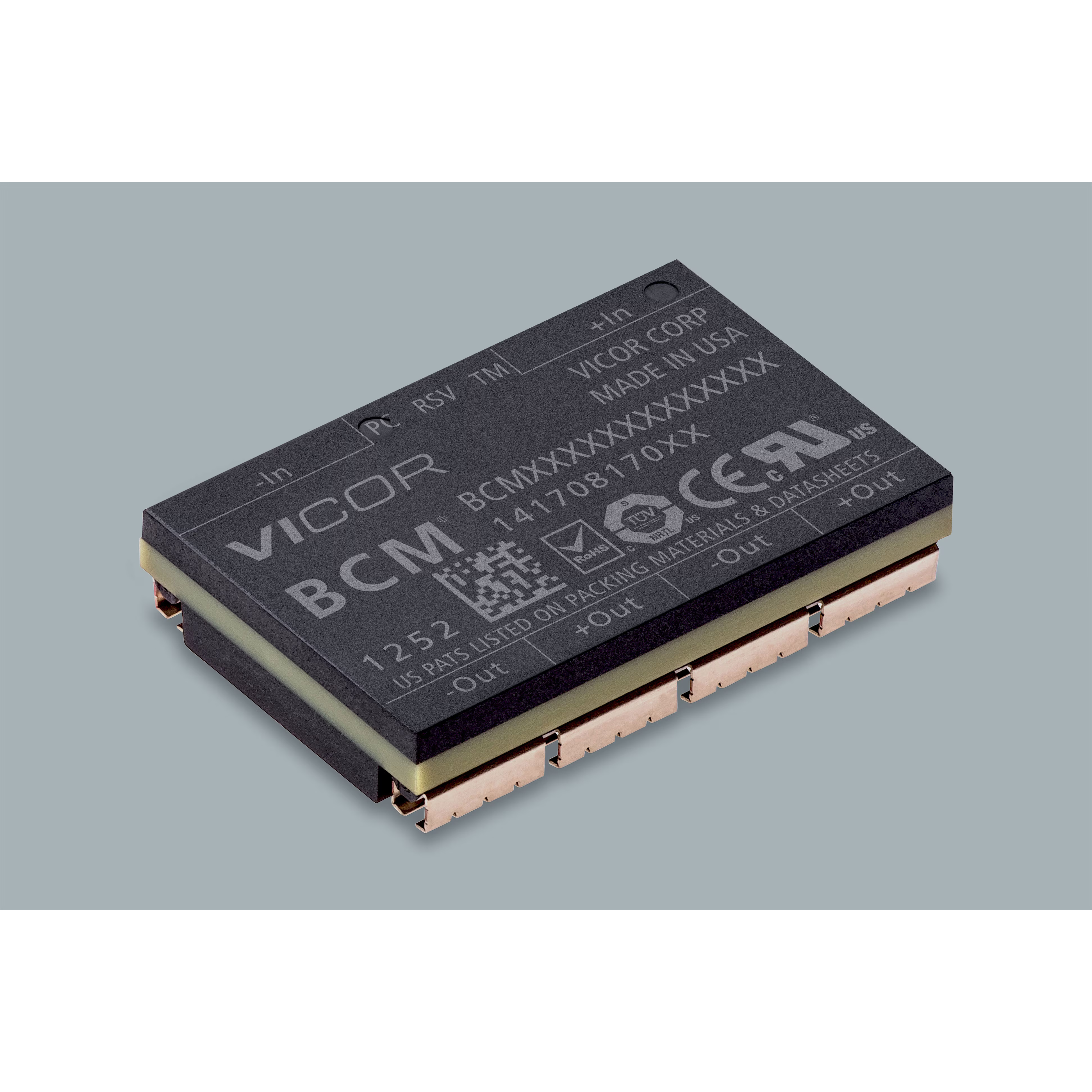

DC to DC Converter and Switching Regulator Module

BCM48BF060M240A00

Module DC-DC 48VIN 1-OUT 6V 47A 240W 60-Pin Full-Chip

Vicor

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8542.39.00.90

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Type

  Step Down

• Isolation

  Isolated

• Number of Outputs

  1

• Minimum Input Voltage (V)

  38

• Typical Input Voltage (V)

  48

• Maximum Input Voltage (V)

  55

• Output Voltage (V)

  6

• Output Current (A)

  47

• Output Power (W)

  240

• Minimum Isolation Voltage

  2250VDC

• Input/Output Type

  DC/DC

• Maximum Switching Frequency (kHz)

  1210(Typ)

• Switching Regulator

  Yes

• Efficiency (%)

  95.6(Typ)

• On/Off Logic

  Positive

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• Output Type

  Fixed

• Mounting

  Surface Mount

• Package Width

  22

• Package Length

  32.5

• PCB changed

  60

• Supplier Package

  Full-Chip

• Pin Count

  60
